Beam Crawls: The Simple Solution for Safe and Efficient Horizontal Load Movement
When it comes to lifting equipment, not every application requires a full overhead crane system. In many workshops, warehouses, manufacturing facilities, and maintenance departments, a beam crawl provides a practical and cost-effective way to move loads safely and efficiently.
Also known as a push trolley or manual trolley, a beam crawl is a simple yet essential component in many lifting systems, allowing hoists to travel horizontally along an I-beam or overhead runway.
What Is a Beam Crawl?
A beam crawl is a rolling mechanism that mounts securely onto the flange of an I-beam or monorail track. A manual or electric hoist is then suspended from the beam crawl, allowing operators to lift a load vertically while also moving it horizontally along the beam.
Instead of installing a complete bridge crane system, businesses can use a beam crawl to create an efficient lifting solution wherever an overhead beam is already available. Beam crawls are available in both push-type and geared configurations to suit different applications and load capacities.
How Does a Beam Crawl Work?
The concept is straightforward:
- The beam crawl is adjusted to fit the width of the I-beam.
- A chain block, lever hoist, or electric hoist is attached to the suspension point.
- The load is lifted vertically by the hoist.
- The operator moves the beam crawl along the beam, transporting the load horizontally to its required position.
This combination provides both lifting and controlled horizontal movement without requiring expensive infrastructure upgrades.
Common Applications
Beam crawls are widely used across many industries, including:
- Manufacturing facilities
- Engineering workshops
- Automotive plants
- Warehouses
- Construction sites
- Maintenance departments
- Steel fabrication workshops
They’re ideal wherever heavy equipment, machinery, or materials need to be moved safely along a fixed path.

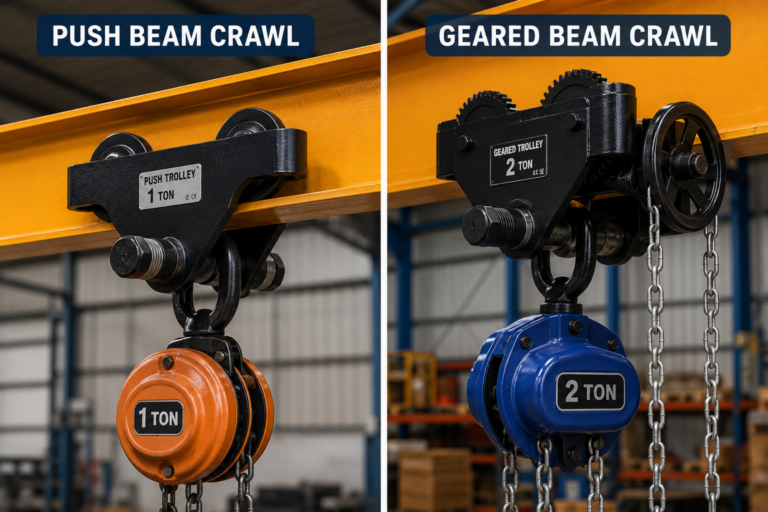

Types of Beam Crawls
Push Beam Crawls
A push beam crawl is manually moved by pushing or pulling the suspended load. They are ideal for lighter loads and applications where frequent movement isn’t required.
Geared Beam Crawls
Geared beam crawls use a hand chain to move the trolley along the beam. This provides greater control and precision, making them suitable for heavier loads or applications where accurate positioning is important.
Benefits of Using a Beam Crawl
Cost-Effective: Beam crawls provide an affordable alternative to installing a complete overhead crane system.
Increased Productivity: Operators can move loads quickly and efficiently without repeatedly lifting and repositioning equipment.
Improved Safety: Controlled horizontal movement reduces manual handling and helps minimize the risk of workplace injuries.
Versatility: Compatible with many manual and electric hoists, beam crawls can be adapted to suit a wide range of lifting requirements.
Easy Installation: Most beam crawls are adjustable to fit different beam widths and can be installed with minimal downtime.
Safety Considerations
Like all lifting equipment, beam crawls should be correctly selected, installed, and regularly inspected.
Before each use, operators should:
- Verify the Safe Working Load (SWL).
- Ensure the beam crawl matches the beam size and flange width.
- Inspect wheels, bearings, side plates, and suspension points for wear or damage.
- Confirm that the hoist and beam crawl are compatible.
- Never exceed the rated capacity of the lifting system.
Routine inspections and maintenance help ensure reliable operation while extending the lifespan of your lifting equipment.
